The dream of scalable quantum computers hinges less on exotic qubit ideas and more on clever engineering of the physical world around them. A Chinese team’s breakthrough with a flat metasurface suggests we can abuse light, not just troubleshoot qubits, to unlock thousands upon thousands of atomic processors. What if the future of quantum machines looks less like a cathedral of lenses and more like a single, precisely patterned slab of silicon nitride?
Introduction
In the race to build more reliable neutral-atom quantum computers, a stubborn bottleneck has been the sheer number of optical traps researchers can generate. Traditional approaches rely on bulky optics and slow, mechanically scanned elements that cap practical qubit counts well under the 100,000 mark. A new pathway—two-dimensional metasurfaces that sculpt light into tens of thousands of simultaneous traps—promises to scale up without exploding the size and cost of the setup. My take? This is less a marginal gain and more a potential redefinition of how we architect quantum hardware at scale.
Metasurfaces as a scalable trap array
What happened

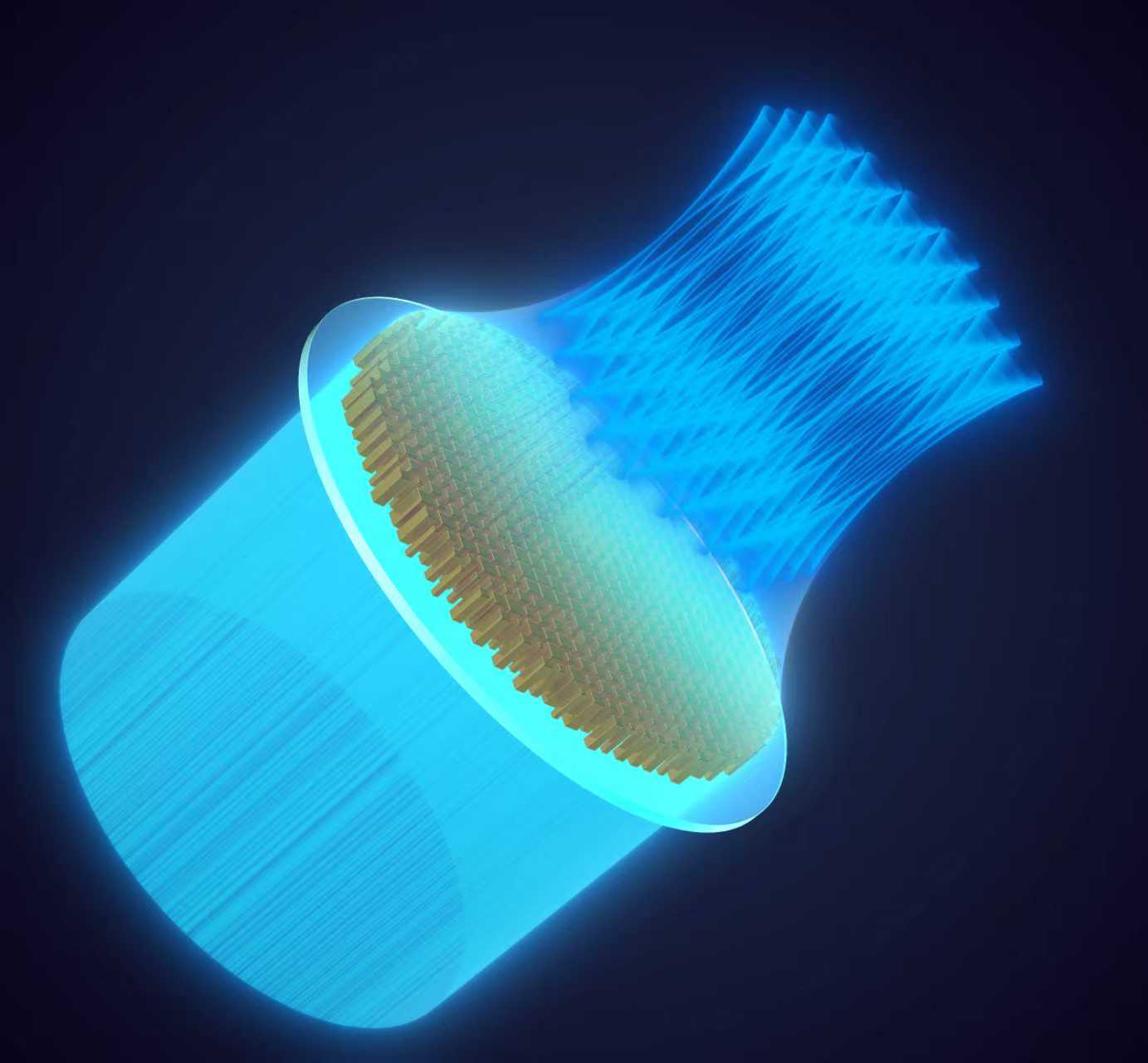

- Researchers designed a metasurface made of nanoscale silicon-nitride pillars that transforms a single laser beam into a 280 by 280 lattice of focal points, effectively creating tens of thousands of optical tweezers.
- The metasurface is fabricated with CMOS-compatible techniques (electron-beam lithography and reactive ion etching), enabling repeatable production at scale.
- Each focal spot can trap a neutral atom, using standard optical-tweezing methods.
Why this matters (personal interpretation)
- What many people don’t realize is that the bottleneck isn’t just optics—it’s modularity. SLMs and AODs are great for small-to-mid arrays but crumble when you ask for 100,000 traps or more. A single metasurface sidesteps the need for moving parts and bulky objectives, which means you can push density up without inflating the lab’s footprint. From my perspective, this is a design philosophy shift—from “more mirrors” to “smarter light shaping in a compact plane.”
- A detail I find especially interesting: the array’s uniform intensity (over 90%) and the Airy-disk-like beam profiles at each site indicate high quality for single-atom control. In practical terms, this reduces error rates and simplifies calibration—two big wins for fault-tolerant schemes.
Implications for fault-tolerant quantum computing
What this suggests (analysis)
- If quantum error correction requires hundreds of physical qubits per logical qubit, then scalable, robust qubit fabrics become a gating factor for progress. Metasurfaces could dramatically drop the cost and complexity per qubit, accelerating the path to logical qubits with practical error rates.
- The external 19.5 mm metasurface being designed to live outside the vacuum chamber hints at a radical simplification: you could trap thousands of atoms with a component that doesn’t even live inside the chamber. That’s not just an incremental improvement; it’s a potential paradigm shift in how quantum hardware is assembled and maintained.
What people often misunderstand
- The focus on the number of traps can obscure quality concerns. Quantity matters, but uniformity, stability under high laser power, and cross-talk between sites determine real-world performance. This research shows a deliberate balance: high trap count with robust power handling, not just “more traps, less care.”
- There’s a fantasy that more traps automatically means better quantum computers. In my view, the real leap is achieving scalable control and low error rates across that large array. The metasurface approach appears to address both density and reliability in a single stroke.
Broader perspective: a new hardware ecosystem
What makes this compelling is not just one experiment, but a growing ecosystem around metasurfaces in quantum hardware. A parallel effort at Columbia achieved even higher pixel efficiency and uniformity, suggesting complementary paths toward ultra-dense, low-footprint qubit architecture. My take: the field is moving toward modular, fabric-like quantum processors where the light-manipulation layer becomes a standard, replaceable, mass-producible component.
Deeper analysis
External metasurfaces outside vacuum chambers could redefine maintenance and upgrades. If you can swap a single metasurface to upgrade capacity or compensate for hardware drift, you gain agility that traditional optics can’t match. This aligns with broader tech trends: as systems scale, modular, standardized, and externally accessible components reduce downtime and increase upgrade cycles.
Another dimension is fabrication readiness. CMOS-compatible processes mean the leap from lab curiosity to industrial production becomes plausible. That matters because quantum computing won’t be built in a few elite laboratories for long; it needs a supply chain, quality control, and repeatability. From my view, this is where theory meets the real world, and the crossing point looks promising.
Conclusion
If the metasurface route continues to prove its resilience at scale, we may witness a quiet revolution in quantum hardware design. The era of sprawling optical benches could give way to compact, wafer-scale quantum processors that harness the same light in hundreds of thousands of tiny, stable traps. Personally, I think this is one of those inflection points where a clever piece of nano-engineering changes the math of scalability. What this really suggests is a future where the limiting factor isn’t the physics of qubits alone, but our willingness to adopt a new hardware mindset: one that treats light as a scalable, manufacturable fabric rather than a bespoke, room-sized instrument.
Follow-up thought: Are we ready to rethink quantum control software to match this new hardware paradigm, ensuring reliability across 100,000+ traps without overburdening engineers with calibration toil? If you’d like, I can outline a roadmap for software-hardware co-design that leverages metasurface-based trap arrays.
